Summerset Cast Stainless Steel Replacement Burner (CAST-TRL) | #304 SS Figure-8 Design | 20,000 BTU
About This Product

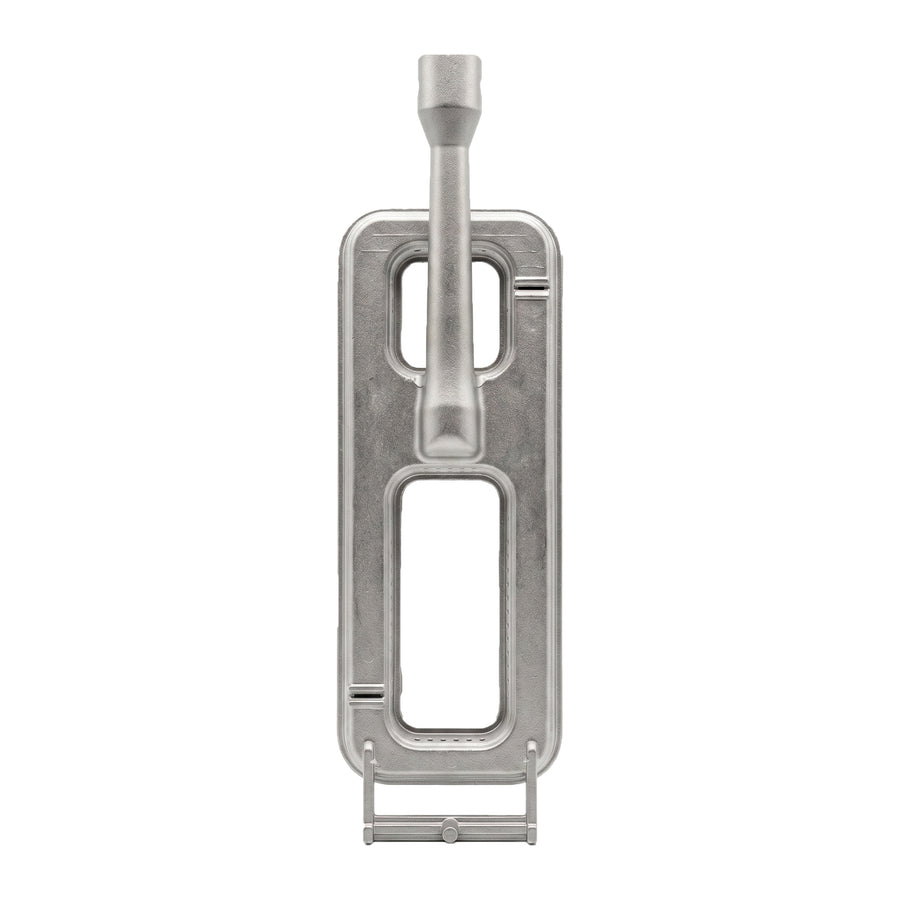

The Summerset CAST-TRL is a direct replacement cast stainless steel burner for Summerset TRL, TRL Deluxe, STG, and PRM series grills. Built from #304 cast stainless steel in a distinctive figure-8 design, this burner delivers 20,000 BTUs of even, reliable heat — a significant upgrade over traditional stamped tube burners in both performance and longevity.
Cast stainless steel construction means these burners resist warping, corrosion, and burn-through far longer than standard tube-style burners. The figure-8 shape maximizes flame coverage across each burner zone, producing more consistent heat distribution across your cooking grates. Each burner is a direct drop-in replacement — remove the old burner, set the new one in place, and you're back to grilling.
Sold individually so you can replace only what you need. We recommend comparing your original burner to confirm compatibility before ordering. For a TRLD 44" grill, you'll need 4 burners total.
Compatible Grills
- Summerset TRLD 32" (TRL Deluxe)
- Summerset TRLD 44" (TRL Deluxe)
- Summerset STG Series
- Summerset PRM Series
Key Features
- #304 Cast Stainless Steel — Premium corrosion-resistant construction
- 20,000 BTU Output — Per burner
- Figure-8 Design — Maximizes flame coverage and heat distribution
- Direct Drop-In Replacement — No modifications required
- Sold Individually — Order the quantity you need
Burner Specifications
| Material | #304 Cast Stainless Steel |
| BTU Output | 20,000 BTU per burner |
| Design | Figure-8 cast design |
| Dimensions | 15 7/8" end to end x approx. 4 3/4" wide |
| Sold | Individually |
Compatible Grills
| TRL 32" | Yes |
| TRL 38" | Yes |
| TRLD 32" | Yes |
| TRLD 44" | Yes (requires 4 burners) |
| STG Series | Yes |
| PRM Series | Yes |
Shipping & Notes
| Shipping | Free Shipping |
| Installation | Direct drop-in replacement, no modifications needed |
| Note | We recommend removing your original burner and comparing before ordering |
