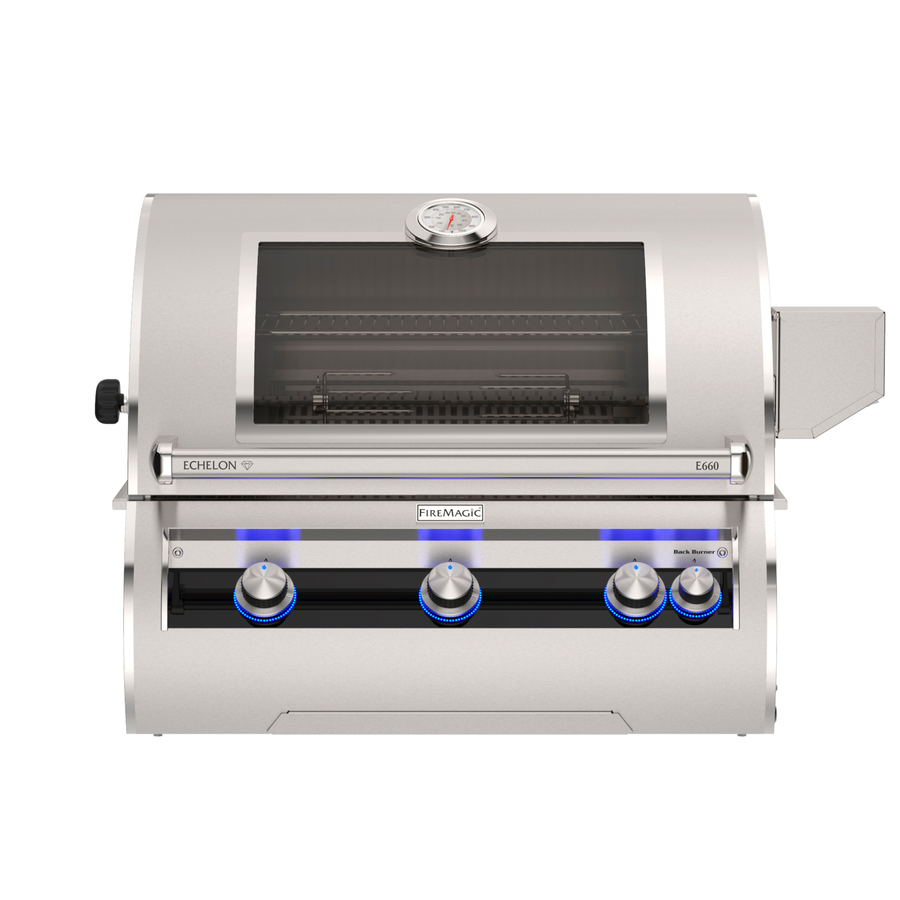

Fire Magic Echelon Diamond E660i Built-In Grill – 660 sq in Cooking Surface, 75,000 BTU Cast Stainless Burners, Analog Thermometer & 304 Stainless Steel
About This Product
The Fire Magic Echelon Diamond E660i 30-Inch Built-In Grill with Analog Thermometer represents the pinnacle of Fire Magic's gas grill engineering. Three cast stainless steel burners with 1/4-inch thick walls deliver 75,000 BTU of main cooking power, complemented by an 11,000 BTU infrared back burner for rotisserie cooking — all controlled through elegant blue backlit knobs beneath an analog thermometer rated to 1,000°F.
The Echelon Diamond series elevates every detail over the Aurora line. Fire Magic's patented Diamond Sear cooking grids feature an advanced trapezoidal shape that maximizes searing contact while allowing precise heat control. A heavy-duty rotisserie kit comes included — not as an add-on — along with the optional Magic View window that lets you check on your food without lifting the lid and losing heat.

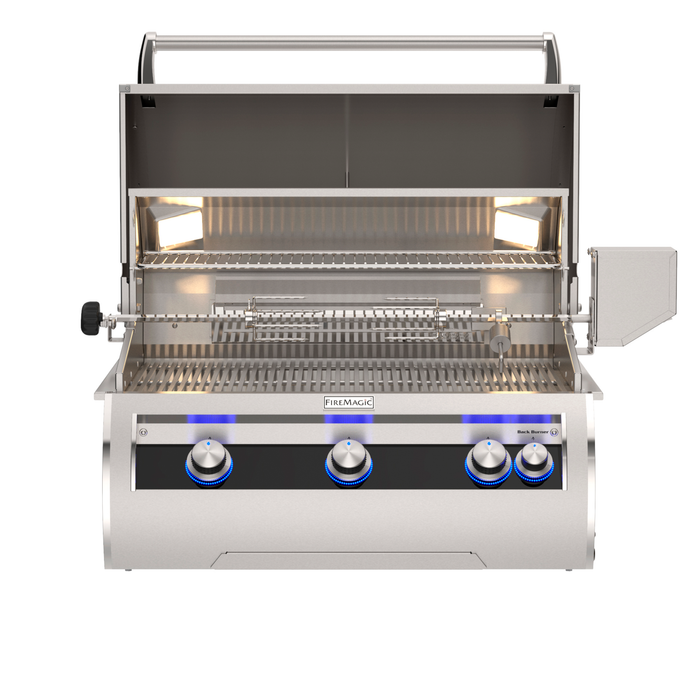

With 900 square inches of total cooking area across the main surface and warming rack, the E660i handles everything from intimate dinners to full-scale entertaining. The double-walled, spring-assisted hood opens to 90 degrees, halogen interior lights illuminate the cooking surface, and hot surface ignition provides reliable, one-touch lighting every time.
Built entirely from 304-grade stainless steel with a lifetime warranty on burners and cooking grids, the Echelon Diamond E660i is designed for discerning outdoor cooks who expect the best. Available in natural gas or propane.
Specifications
| Model | E660i-9EAN-W |
| Series | Echelon Diamond |
| Configuration | Built-In |
| Fuel Type | Natural Gas / Propane |
| Main Burners | 3 Cast Stainless Steel (1/4" Walls) |
| Main Burner BTU | 75,000 |
| Back Burner BTU | 11,000 |
| Total BTU | 86,000 |
| Primary Cooking Area | 660 sq. in. |
| Warming Rack Area | 240 sq. in. |
| Total Cooking Area | 900 sq. in. |
| Stainless Steel Grade | 304 |
| Cooking Grate Material | Diamond Sear Cooking Grids (Trapezoid) |
| Flavor Grid Material | 16-Gauge Stainless Steel |
| Ignition Type | Hot Surface Ignition |
| Thermometer | Analog (0–1000°F, Polished Bezel) |
| Hood Design | Double-Wall, Spring-Assisted (Opens 90°) |
| Grill Lights | Halogen Interior Lights |
| Control Knobs | Blue Backlit |
| Rotisserie Kit | Heavy-Duty Kit Included |
| Magic View Window | Optional |
| Power Requirement | 120V AC |
| Cutout Dimensions | 31.25"W x 23.5"D x 11.5"H |
| Weight | 245 lbs |
| Warranty | Lifetime (Burners, Grids) / 1 Yr (Ignition) |
Manufacturer Warranty
This product is backed by a full manufacturer warranty. As an authorized dealer, all warranties are fully valid on purchases from Living Outdoorsy.
Contact us with your order number and description of the issue. We work directly with the manufacturer to process claims — most are resolved within 5–10 business days.
Downloads & Resources
Shipping Information
Free standard shipping on all orders over $99. This item ships via freight carrier and typically leaves our warehouse within 5–7 business days.
You'll receive tracking information via email once your order ships. Freight deliveries include curbside delivery.
Returns & Exchanges
We accept returns within 30 days of delivery. Items must be in original, unused condition with all packaging.
Contact our team at (844) 366-7791 or support@livingoutdoorsy.com to start a return.
What We Love
- Professional-grade construction designed for permanent outdoor kitchen installation
- High-performance burners with precise temperature control
- Sleek built-in design integrates seamlessly into custom outdoor kitchens
- Heavy-duty materials ensure decades of reliable grilling performance
Worth Noting
- Requires professional installation and custom cabinetry or island
- Higher investment than portable or freestanding alternatives
- Permanent installation means less flexibility for layout changes
