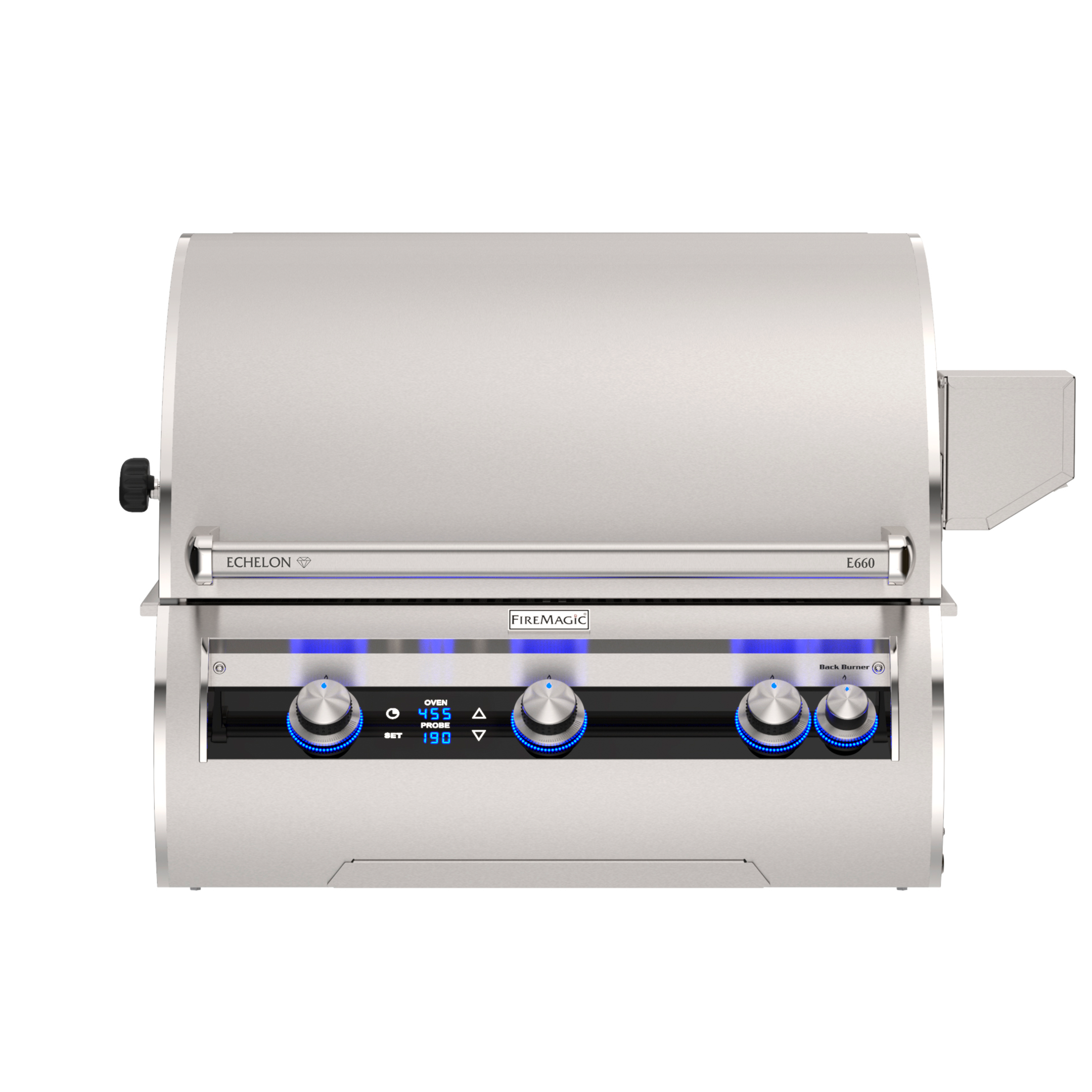

Fire Magic Echelon Diamond E660i Built-In Grill – 660 sq in Cooking Surface, 75,000 BTU+ Cast Stainless Burners, Digital Thermometer & Smart Control
About This Product
The Fire Magic Echelon Diamond E660i 30-Inch Built-In Grill with Digital Thermometer and Smart Control brings connected technology to premium outdoor cooking. Three cast stainless steel burners produce 75,000 BTU of main heat, an 11,000 BTU infrared back burner handles rotisserie cooking, and a digital touchscreen control panel with Bluetooth connectivity lets you monitor and adjust temperatures from your phone.
The digital control system goes beyond a simple thermometer upgrade. A black glass control panel houses the touchscreen display, built-in meat probe, and timer functions — giving you precise, data-driven control over every cook. The included Bluetooth remote capability means you can step away from the grill and still monitor internal temperatures, set alarms, and track cooking time.

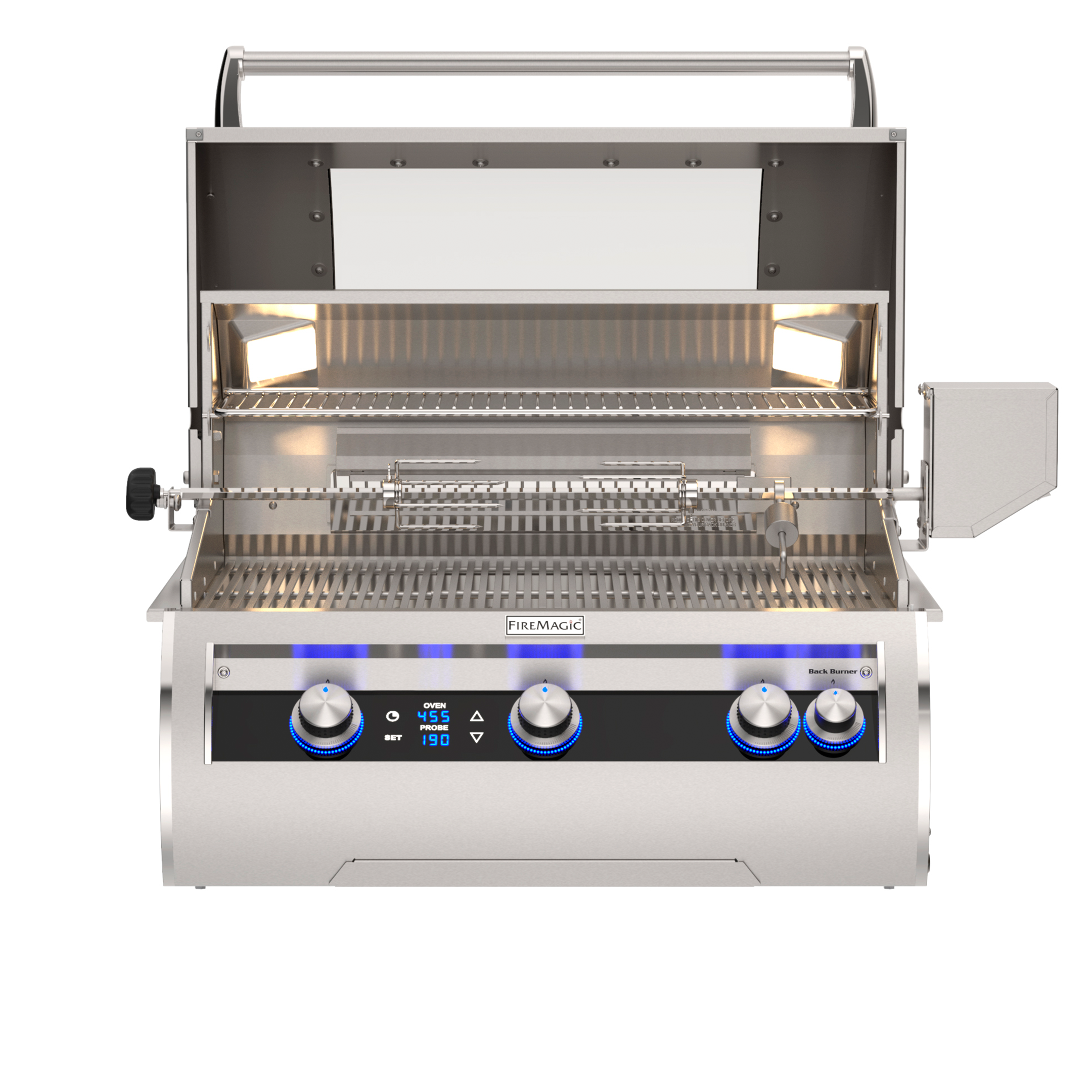

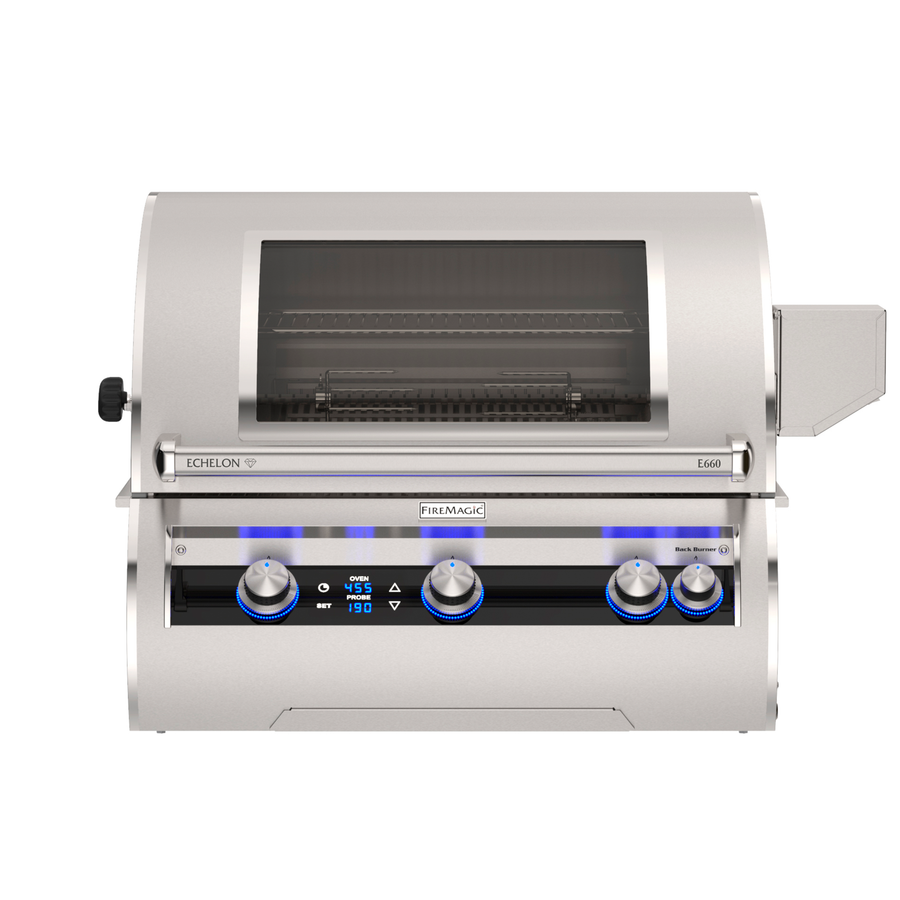

Under the hood, this is the same premium Echelon Diamond platform: 900 square inches of total cooking area, patented Diamond Sear cooking grids with superior searing performance, 16-gauge stainless steel flavor grids, and a heavy-duty rotisserie kit included as standard. The optional Magic View window adds the ability to check food without opening the lid.
All 304-grade stainless steel construction with Fire Magic's lifetime warranty on burners and grids. The E660i Digital is for outdoor cooks who want precision control paired with Fire Magic's legendary build quality. Available in natural gas or propane.
Specifications
| Model | E660i-9E1N-W / E660i-9L1N-W |
| Series | Echelon Diamond |
| Configuration | Built-In |
| Fuel Type | Natural Gas / Propane |
| Main Burners | 3 Cast Stainless Steel (1/4" Walls) |
| Main Burner BTU | 75,000 |
| Back Burner BTU | 11,000 |
| Total BTU | 86,000 |
| Primary Cooking Area | 660 sq. in. |
| Warming Rack Area | 240 sq. in. |
| Total Cooking Area | 900 sq. in. |
| Stainless Steel Grade | 304 |
| Cooking Grate Material | Diamond Sear Cooking Grids (Trapezoid) |
| Flavor Grid Material | 16-Gauge Stainless Steel |
| Ignition Type | Hot Surface Ignition |
| Thermometer | Digital Touchscreen with Bluetooth |
| Hood Design | Double-Wall, Spring-Assisted (Opens 90°) |
| Grill Lights | Halogen Interior Lights |
| Control Panel | Black Glass with Digital Display |
| Rotisserie Kit | Heavy-Duty Kit Included |
| Meat Probe | Included |
| Magic View Window | Optional |
| Power Requirement | 120V AC |
| Cutout Dimensions | 31.25"W x 23.5"D x 11.5"H |
| Weight | 245 lbs |
| Warranty | Lifetime (Burners, Grids) / 1 Yr (Ignition) |
Manufacturer Warranty
This product is backed by a full manufacturer warranty. As an authorized dealer, all warranties are fully valid on purchases from Living Outdoorsy.
Contact us with your order number and description of the issue. We work directly with the manufacturer to process claims — most are resolved within 5–10 business days.
Downloads & Resources
Shipping Information
Free standard shipping on all orders over $99. This item ships via freight carrier and typically leaves our warehouse within 5–7 business days.
You'll receive tracking information via email once your order ships. Freight deliveries include curbside delivery.
Returns & Exchanges
We accept returns within 30 days of delivery. Items must be in original, unused condition with all packaging.
Contact our team at (844) 366-7791 or support@livingoutdoorsy.com to start a return.
What We Love
- Professional-grade construction designed for permanent outdoor kitchen installation
- High-performance burners with precise temperature control
- Sleek built-in design integrates seamlessly into custom outdoor kitchens
- Heavy-duty materials ensure decades of reliable grilling performance
Worth Noting
- Requires professional installation and custom cabinetry or island
- Higher investment than portable or freestanding alternatives
- Permanent installation means less flexibility for layout changes
