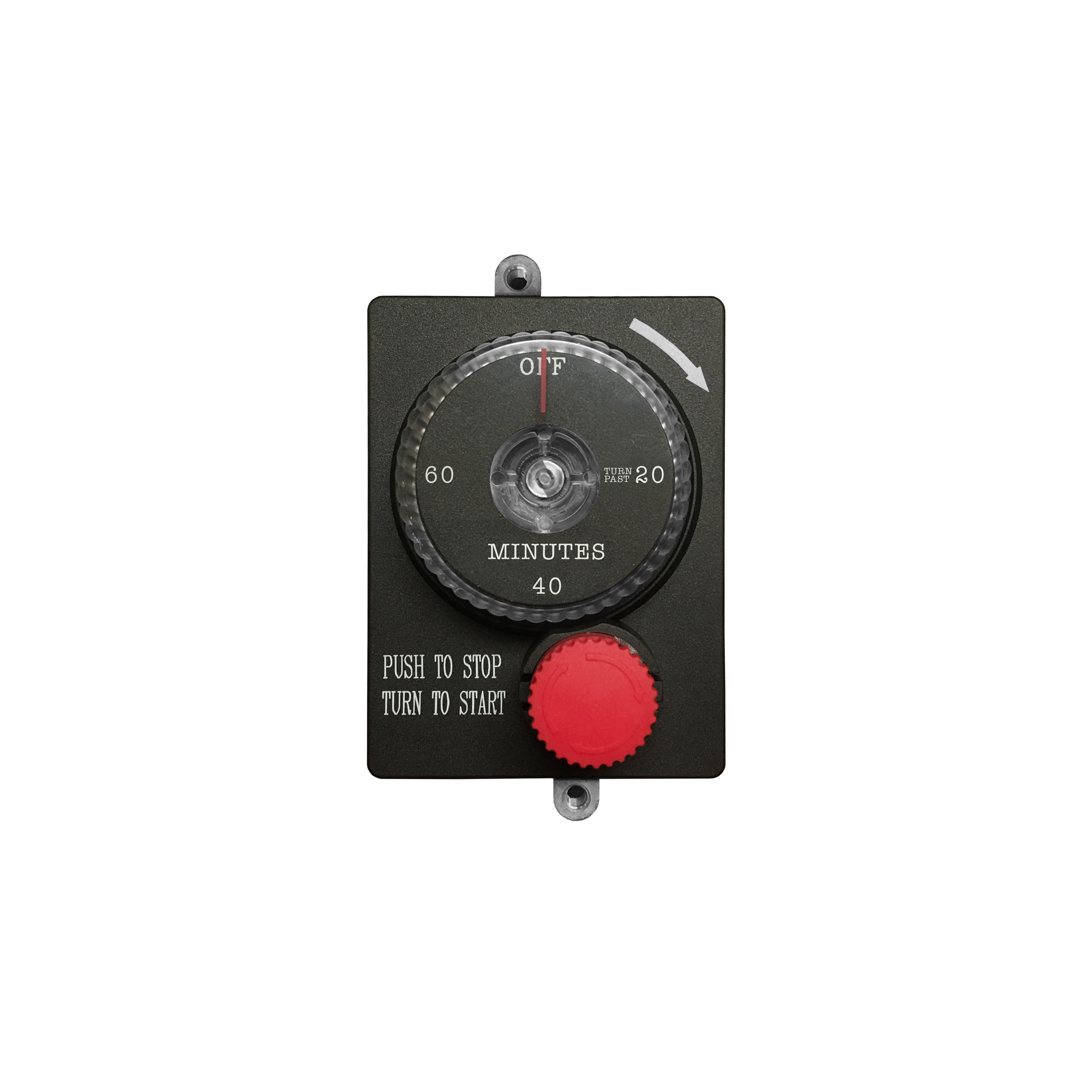

Firegear 1-Hour Gas Timer Emergency Shutoff (ESTOP1-0H)
About This Product
Bring utility and safety to your gas grill with the Summerset Gas Timer. Built with matching durable #304 stainless steel to weather the elements, this timer features a simple and sleek design, 1-hour setting, and limited Lifetime Warranty
*Mounting Plate Sold Separately
Free shipping available on this premium outdoor product.
E-STOP Gas Timer
| Model | ESTOP1-0H |
| Type | Emergency Shut-Off Mechanical Timer & Manual Shut-Off Gas Valve |
| Timer Duration | 1 Hour (60 Minutes) |
| Timer Accuracy | +/- 15% |
| Pipe Size | ½" NPT — (2) Inlets and (2) Outlets |
| CSA Rated Capacity | 165,000 BTU/Hr at 1" Pressure Drop (NG) |
| Maximum Pressure | ½" PSI |
| Body Dimensions | 4" H x 2⅞" W x 2⅛" D |
| Ambient Temperature Range | 0°F to 175°F (79°C) |
| Fuel Type | Natural Gas or LP Gas (No Conversion Required) |
| Power Source | Mechanical — No Batteries or Power Required |
| Inlets | Fine Mesh Screens to Filter Debris |
| Mounting Holes | 3/16-24 Machine Threads |
| Certifications | CSA Certified — Tested to ANSI Z21.21; CSA 6.5 |
| U.S. Patent | 10,520,108 |
ESTOP-RM-KIT — Surface Mounting Kit
| Model | ESTOP-RM-KIT |
| Type | Surface Mounted Design |
| Wall Cutout Required | 3⅛" W x 4¾" H |
| Cover Plate Dimensions | 5¾" W x 6¾" H |
| Protrusion from Wall | ⅞" |
| Material | Stainless Steel |
| Compatible Applications | Firegear MatchThrow (MT), TMSI Fire Pits, BBQ Grills |
| Gas Timer Included | No — Sold Separately |
ESTOP-LC-KIT — Locking Cabinet Kit
| Model | ESTOP-LC-KIT |
| Type | Recessed Mounting Kit with Locking Cabinet Door |
| Rough Opening Required | 7⅛" x 7⅛" |
| Material | Stainless Steel |
| Door Options | Locking (Key Included) or Non-Locking (Rubber Grommet Included) |
| Door Pivot | Left or Right Opening (Configurable) |
| Compatible Applications | Firegear MatchThrow (MT), TMSI Fire Pits, BBQ Grills |
| Gas Timer Included | No — Sold Separately |
ESTOP-CP-KIT — Control Panel Kit
| Model | ESTOP-CP-KIT |
| Type | Paver Block Enclosure Mounting Kit |
| Paver Bracket Width | 8" to 11¾" (Adjustable with Extension) |
| Cover Plate Dimensions | 5¾" W x 6¾" H |
| Protrusion from Wall | ⅞" |
| Includes | Paver Bracket, Bracket Extension, Cover Plate, 3" x 12" Metal Lintel Support |
| Material | Stainless Steel |
| Compatible Applications | Firegear MatchThrow (MT), TMSI Fire Pits, BBQ Grills |
| Gas Timer Included | No — Sold Separately |
| Warranty | 12 Months from Date of Purchase |
