Fire Magic Echelon E790i 36-Inch Built-In Grills with Digital Thermometer
About This Product
The Fire Magic Echelon Diamond E790i 36-Inch Built-In Grill with Digital Thermometer combines the full power of the E790i platform with connected smart cooking technology. Three cast stainless steel burners deliver 96,000 BTU of main heat, a 13,000 BTU infrared back burner handles rotisserie duties, and a digital touchscreen control panel with Bluetooth gives you precise, remote-capable temperature management across 1,080 square inches of cooking space.
The digital control system features a black glass panel with touchscreen display, integrated meat probe, timer, and alarm settings — all accessible from your phone via Bluetooth. This lets you set exact target temperatures, monitor internal meat temps, and receive alerts without standing over the grill. The -L1N model variant adds a left-side infrared sear burner for dedicated high-heat searing.

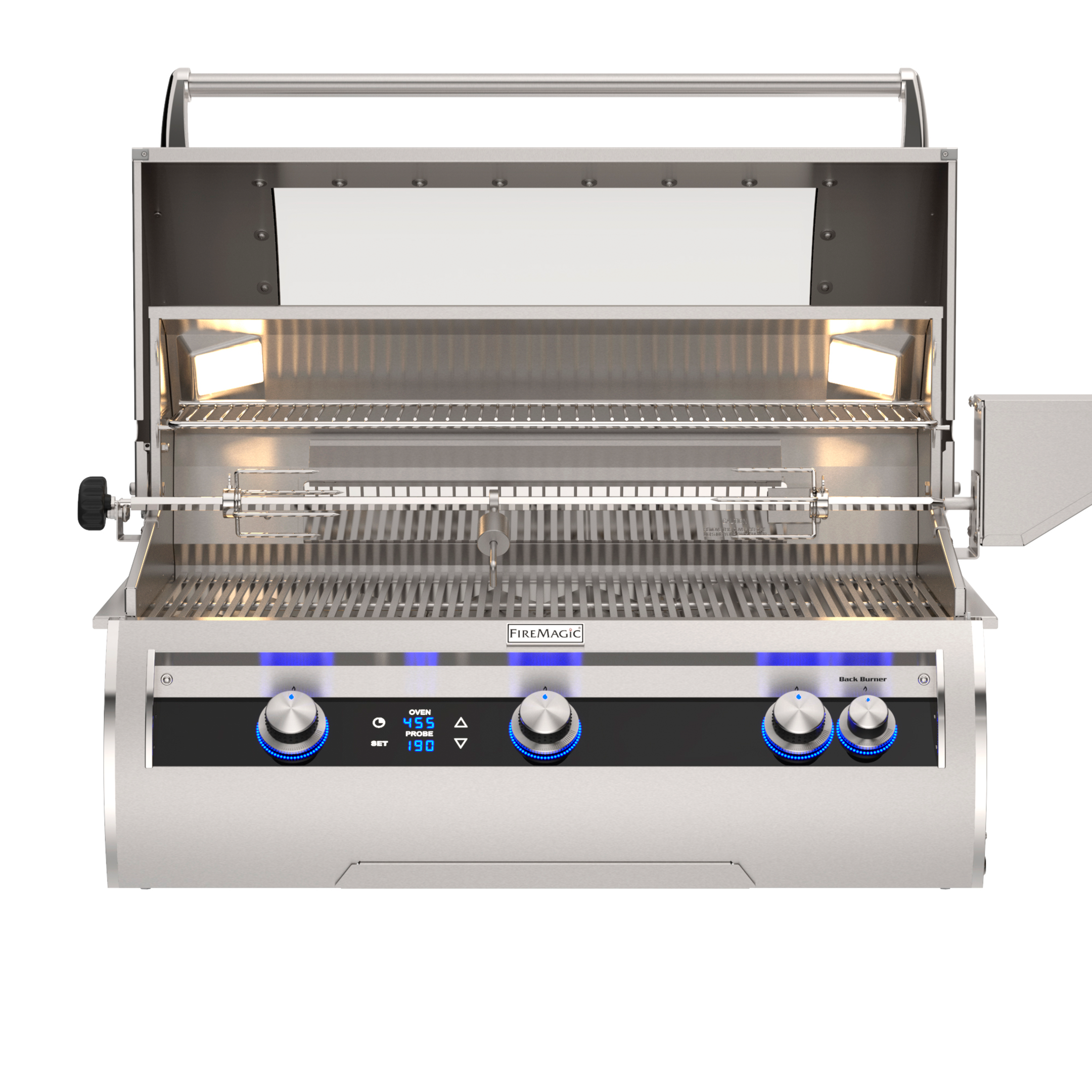

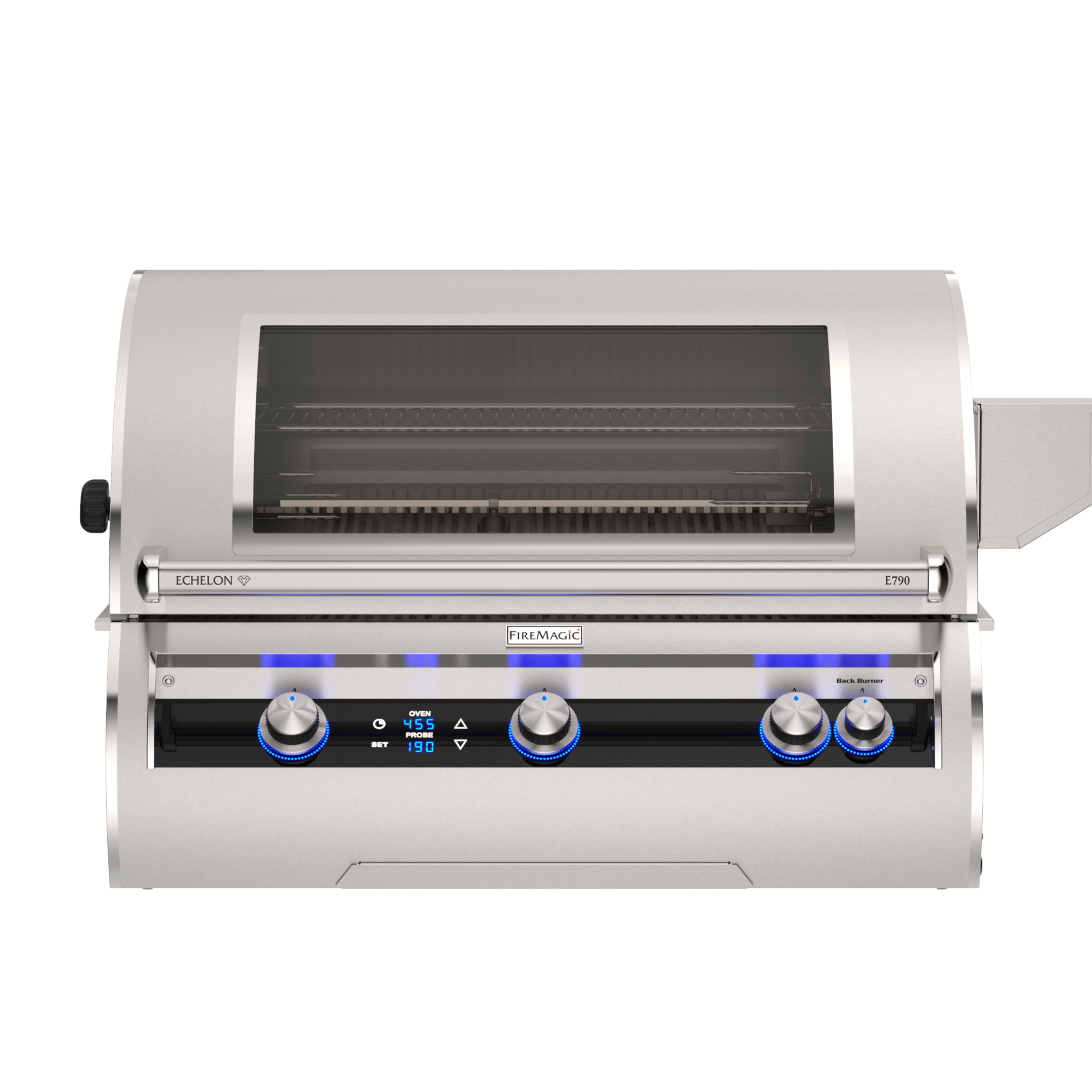

The E790i Digital shares every premium feature of the Echelon Diamond line: patented Diamond Sear cooking grids, 16-gauge stainless steel flavor grids, heavy-duty rotisserie kit included, heat zone separators, three halogen interior lights, and the optional Magic View window. The spring-assisted, double-walled hood opens to a full 90 degrees.
All 304-grade stainless steel construction with a lifetime warranty on burners and grids. At 265 pounds, this is a flagship outdoor cooking platform for homeowners who want premium build quality paired with modern smart controls. Available in natural gas or propane.
Specifications
| Model | E790i-9E1N-W / E790i-9L1N-W |
| Series | Echelon Diamond |
| Configuration | Built-In |
| Fuel Type | Natural Gas / Propane |
| Main Burners | 3 Cast Stainless Steel (1/4" Walls) |
| Main Burner BTU | 96,000 |
| Back Burner BTU | 13,000 |
| Total BTU | 109,000 |
| Primary Cooking Area | 792 sq. in. |
| Warming Rack Area | 288 sq. in. |
| Total Cooking Area | 1,080 sq. in. |
| Stainless Steel Grade | 304 |
| Cooking Grate Material | Diamond Sear Cooking Grids (Trapezoid) |
| Flavor Grid Material | 16-Gauge Stainless Steel |
| Ignition Type | Hot Surface Ignition |
| Thermometer | Digital Touchscreen with Bluetooth |
| Hood Design | Double-Wall, Spring-Assisted (Opens 90°) |
| Grill Lights | 3 Halogen Interior Lights |
| Control Panel | Black Glass with Digital Display |
| Rotisserie Kit | Heavy-Duty Kit Included |
| Heat Zone Separators | Yes |
| Meat Probe | Included |
| Left Infrared Sear Burner | Available (-L1N Models) |
| Magic View Window | Optional |
| Power Requirement | 120V AC |
| Cutout Dimensions | 37"W x 23.5"D x 11.5"H |
| Weight | 265 lbs |
| Warranty | Lifetime (Burners, Grids) / 1 Yr (Ignition) |
Manufacturer Warranty
This product is backed by a full manufacturer warranty. As an authorized dealer, all warranties are fully valid on purchases from Living Outdoorsy.
Contact us with your order number and description of the issue. We work directly with the manufacturer to process claims — most are resolved within 5–10 business days.
Downloads & Resources
Shipping Information
Free standard shipping on all orders over $99. This item ships via freight carrier and typically leaves our warehouse within 5–7 business days.
You'll receive tracking information via email once your order ships. Freight deliveries include curbside delivery.
Returns & Exchanges
We accept returns within 30 days of delivery. Items must be in original, unused condition with all packaging.
Contact our team at (844) 366-7791 or support@livingoutdoorsy.com to start a return.
What We Love
- Professional-grade construction designed for permanent outdoor kitchen installation
- High-performance burners with precise temperature control
- Sleek built-in design integrates seamlessly into custom outdoor kitchens
- Heavy-duty materials ensure decades of reliable grilling performance
Worth Noting
- Requires professional installation and custom cabinetry or island
- Higher investment than portable or freestanding alternatives
- Permanent installation means less flexibility for layout changes
