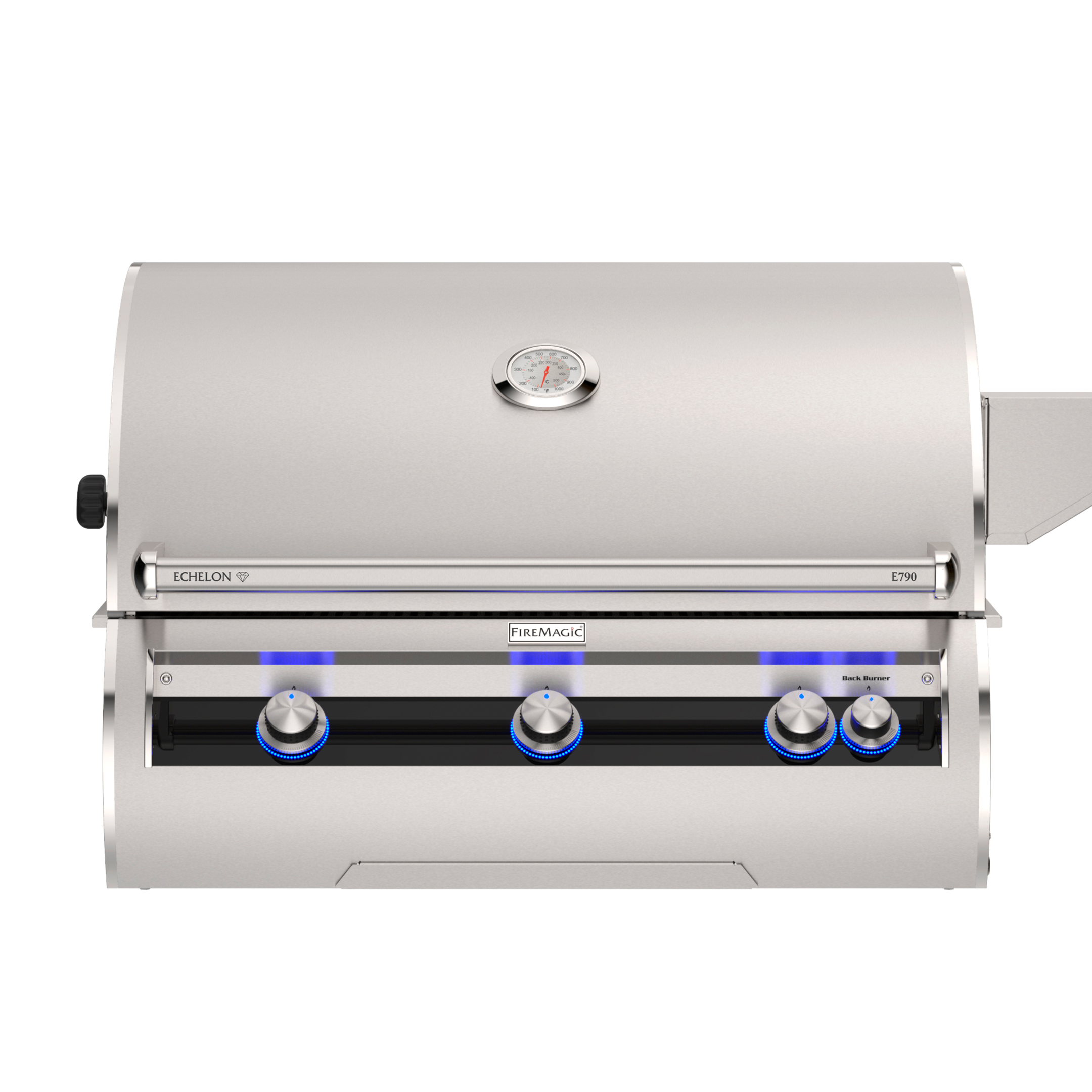

Fire Magic E790i 36-Inch Built-In Grills with Analog Thermometer
About This Product
The Fire Magic Echelon Diamond E790i 36-Inch Built-In Grill with Analog Thermometer delivers commanding cooking performance across a generous 1,080 square inches of total cooking area. Three cast stainless steel burners with 1/4-inch thick walls produce a combined 96,000 BTU, and a 13,000 BTU infrared back burner brings total output to 109,000 BTU — exceptional heat for searing, roasting, and everything in between.
The 36-inch format is the sweet spot for serious outdoor kitchens: large enough to cook for crowds, but efficient enough for everyday family meals. Fire Magic's patented Diamond Sear cooking grids deliver unmatched searing performance with their advanced trapezoidal design, while three halogen interior lights illuminate every inch of the cooking surface for confident nighttime grilling.

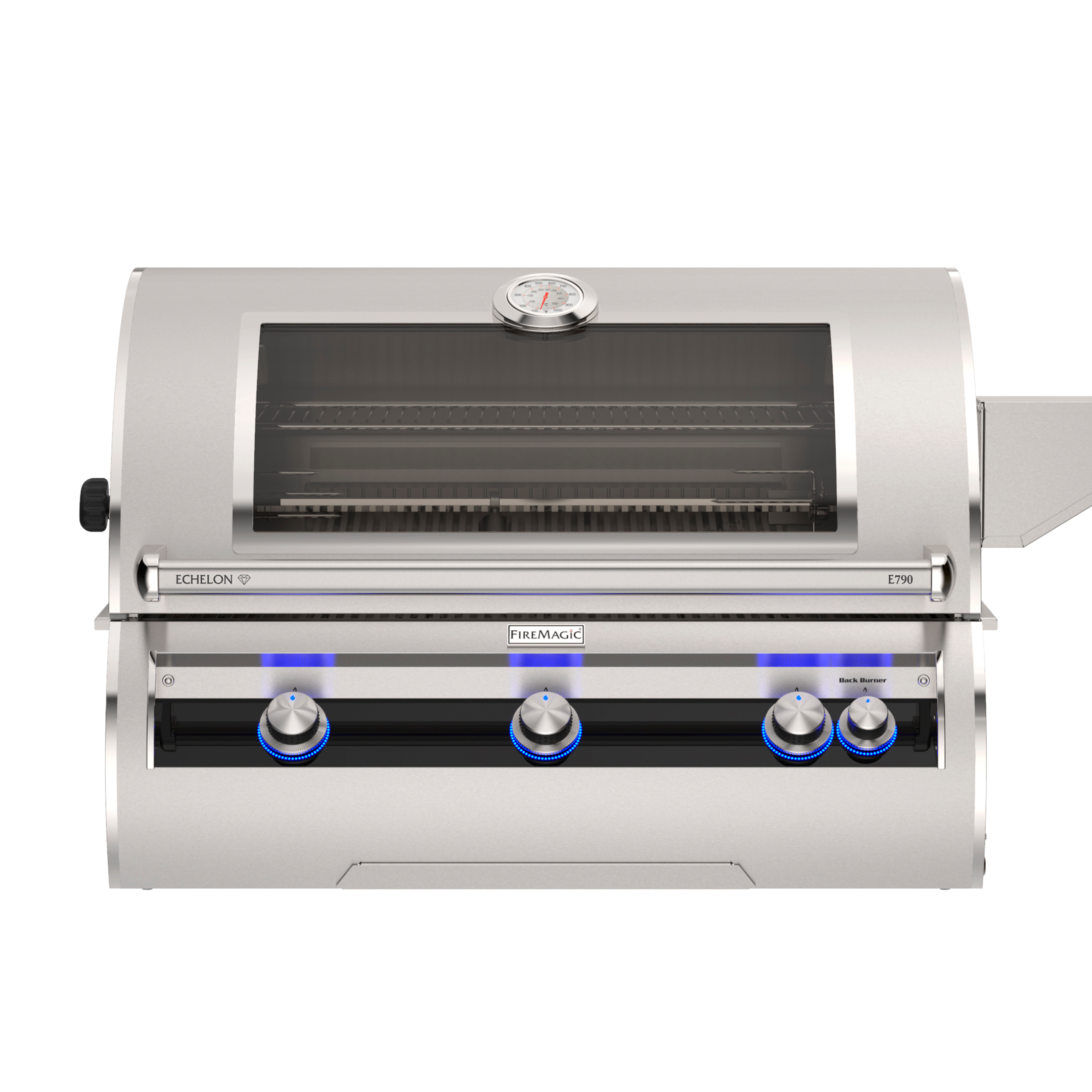

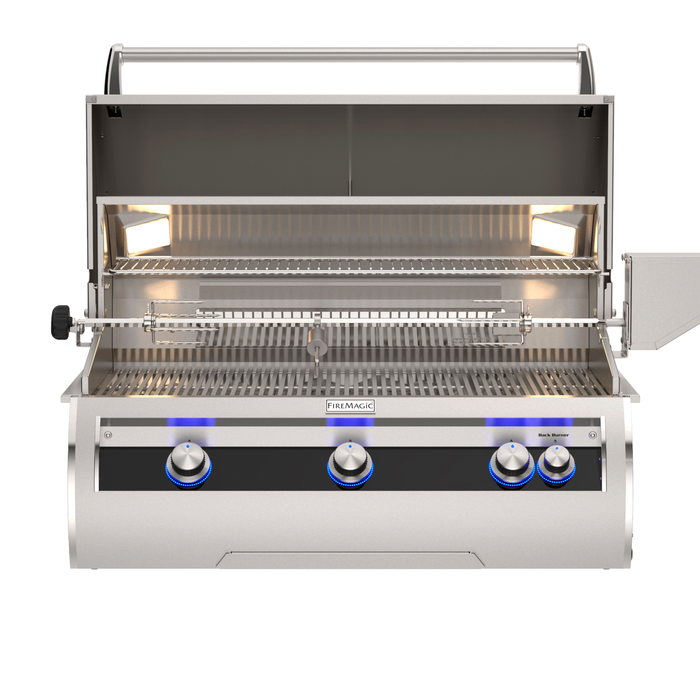

Every Echelon Diamond detail is present: a heavy-duty rotisserie kit included as standard, heat zone separators for independent temperature control, blue backlit control knobs, a double-walled spring-assisted hood, and the optional Magic View window for monitoring food without lifting the lid. The polished stainless steel bezel analog thermometer reads up to 1,000°F.
Built from 304-grade stainless steel throughout and weighing 265 pounds, the E790i is a permanent, high-performance centerpiece for premium outdoor kitchens. Lifetime warranty on burners and cooking grids. Available in natural gas or propane.
Specifications
| Model | E790i-9EAN-W |
| Series | Echelon Diamond |
| Configuration | Built-In |
| Fuel Type | Natural Gas / Propane |
| Main Burners | 3 Cast Stainless Steel (1/4" Walls) |
| Main Burner BTU | 96,000 |
| Back Burner BTU | 13,000 |
| Total BTU | 109,000 |
| Primary Cooking Area | 792 sq. in. |
| Warming Rack Area | 288 sq. in. |
| Total Cooking Area | 1,080 sq. in. |
| Stainless Steel Grade | 304 |
| Cooking Grate Material | Diamond Sear Cooking Grids (Trapezoid) |
| Flavor Grid Material | 16-Gauge Stainless Steel |
| Ignition Type | Hot Surface Ignition |
| Thermometer | Analog (0–1000°F, Polished Bezel) |
| Hood Design | Double-Wall, Spring-Assisted (Opens 90°) |
| Grill Lights | 3 Halogen Interior Lights |
| Control Knobs | Blue Backlit |
| Rotisserie Kit | Heavy-Duty Kit Included |
| Heat Zone Separators | Yes |
| Magic View Window | Optional |
| Power Requirement | 120V AC |
| Cutout Dimensions | 37"W x 23.5"D x 11.5"H |
| Weight | 265 lbs |
| Warranty | Lifetime (Burners, Grids) / 1 Yr (Ignition) |
Manufacturer Warranty
This product is backed by a full manufacturer warranty. As an authorized dealer, all warranties are fully valid on purchases from Living Outdoorsy.
Contact us with your order number and description of the issue. We work directly with the manufacturer to process claims — most are resolved within 5–10 business days.
Downloads & Resources
Shipping Information
Free standard shipping on all orders over $99. This item ships via freight carrier and typically leaves our warehouse within 5–7 business days.
You'll receive tracking information via email once your order ships. Freight deliveries include curbside delivery.
Returns & Exchanges
We accept returns within 30 days of delivery. Items must be in original, unused condition with all packaging.
Contact our team at (844) 366-7791 or support@livingoutdoorsy.com to start a return.
What We Love
- Professional-grade construction designed for permanent outdoor kitchen installation
- High-performance burners with precise temperature control
- Sleek built-in design integrates seamlessly into custom outdoor kitchens
- Heavy-duty materials ensure decades of reliable grilling performance
Worth Noting
- Requires professional installation and custom cabinetry or island
- Higher investment than portable or freestanding alternatives
- Permanent installation means less flexibility for layout changes
