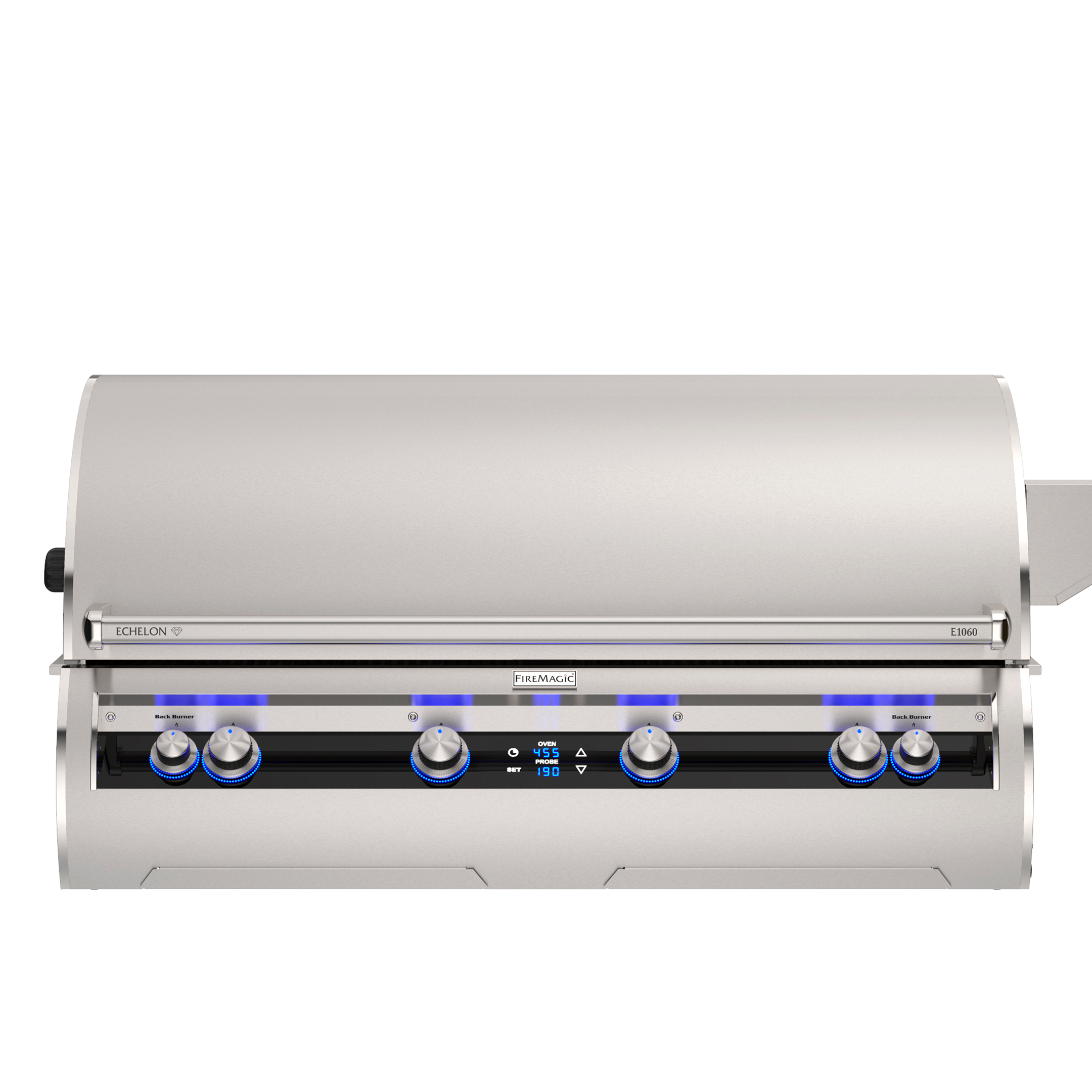

Fire Magic Echelon E1060i 48-Inch Built-In Grills with Digital Thermometer
About This Product
The Fire Magic Echelon Diamond E1060i 48-Inch Built-In Grill with Digital Thermometer is the ultimate expression of Fire Magic's engineering: massive 48-inch cooking capacity combined with connected smart technology for precision control over every heat zone. Four cast stainless steel burners deliver 112,000 BTU of main cooking power, a 22,000 BTU back burner handles rotisserie duties, and a digital touchscreen with Bluetooth gives you remote monitoring and control across 1,440 square inches of total cooking area.
The digital control system provides granular management of this enormous cooking platform — set target temperatures, monitor internal meat temps with the included probe, and receive alerts on your phone when your food hits the mark. The -L1N model variant adds a left-side infrared sear burner for dedicated high-heat searing that rivals commercial steakhouse equipment.

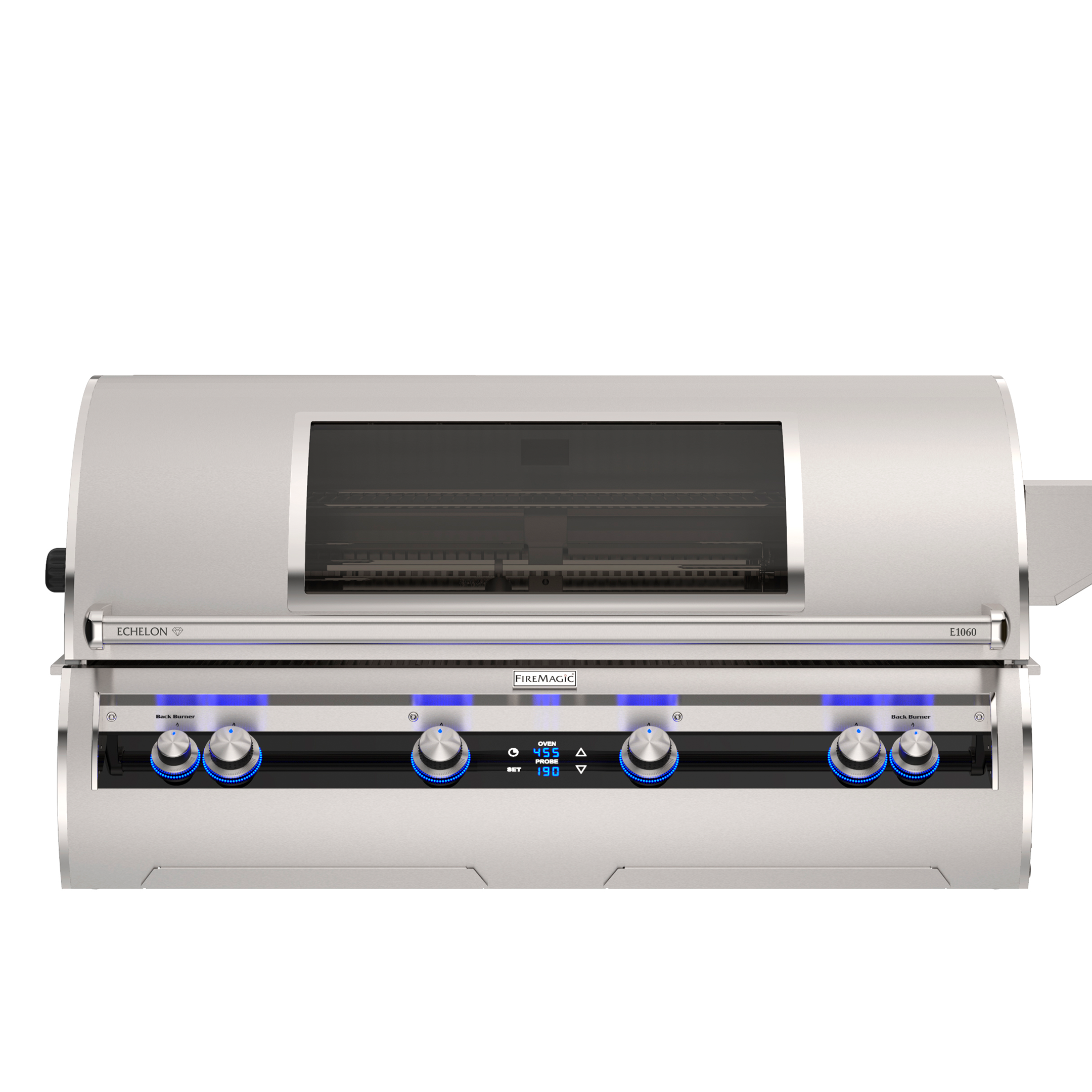

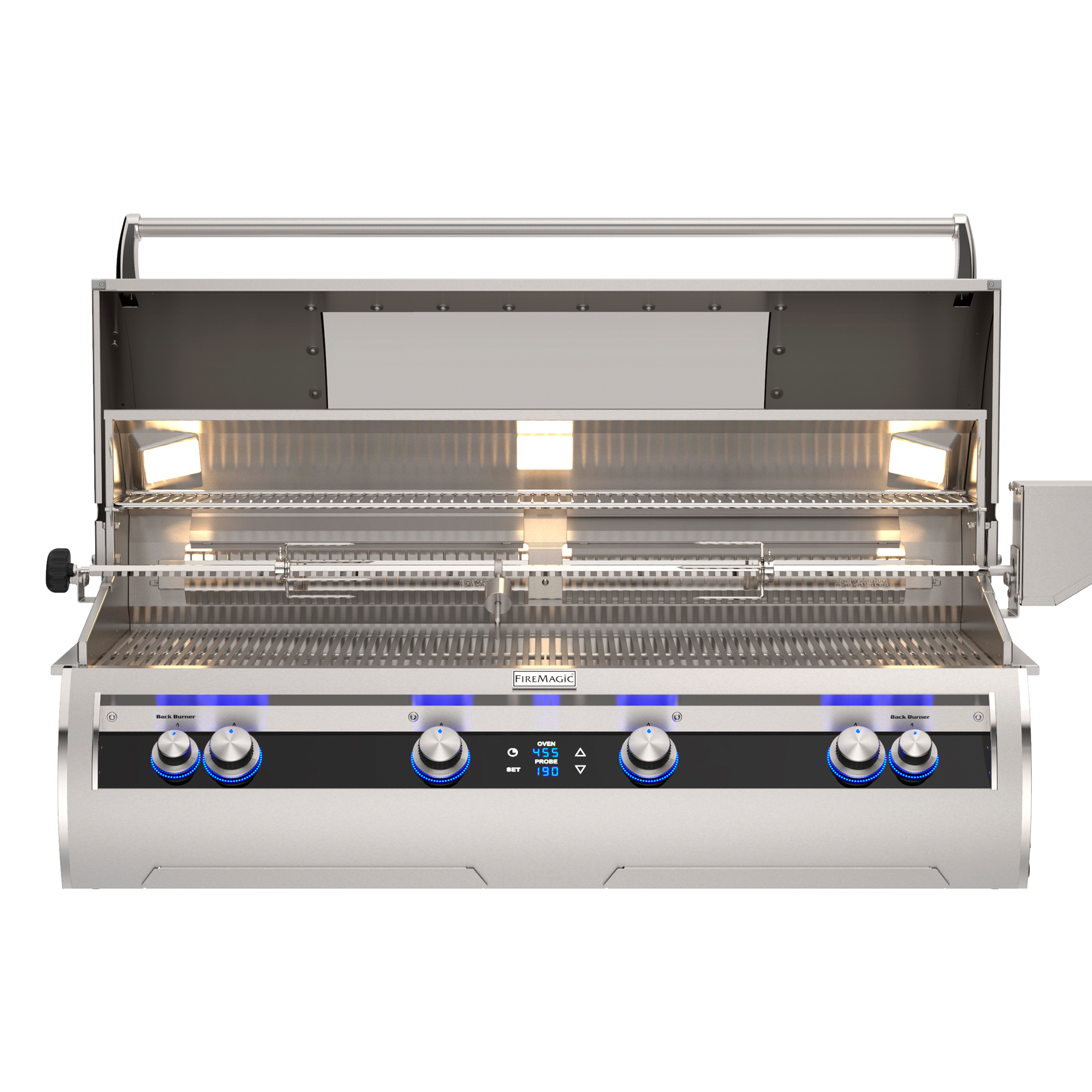

Every premium Echelon Diamond feature is present at this scale: patented Diamond Sear cooking grids across the full width, 16-gauge flavor grids, heavy-duty rotisserie kit, three halogen interior lights, and the optional Magic View window. The black glass digital control panel with touchscreen display brings a modern, refined aesthetic to the grill's substantial presence.
At 290 pounds of 304-grade stainless steel with a lifetime warranty on burners and grids, the E1060i Digital is the flagship of Fire Magic's built-in lineup — built for serious entertainers and outdoor kitchen enthusiasts who accept no compromises. Available in natural gas or propane.
Specifications
| Model | E1060i-9E1N-W / E1060i-9L1N-W |
| Series | Echelon Diamond |
| Configuration | Built-In |
| Fuel Type | Natural Gas / Propane |
| Main Burners | 4 Cast Stainless Steel (1/4" Walls) |
| Main Burner BTU | 112,000 |
| Back Burner BTU | 22,000 |
| Total BTU | 134,000 |
| Primary Cooking Area | 1,056 sq. in. |
| Warming Rack Area | 384 sq. in. |
| Total Cooking Area | 1,440 sq. in. |
| Stainless Steel Grade | 304 |
| Cooking Grate Material | Diamond Sear Cooking Grids (Trapezoid) |
| Flavor Grid Material | 16-Gauge Stainless Steel |
| Ignition Type | Hot Surface Ignition |
| Thermometer | Digital Touchscreen with Bluetooth |
| Hood Design | Double-Wall, Spring-Assisted (Opens 90°) |
| Grill Lights | 3 Halogen Interior Lights |
| Control Panel | Black Glass with Digital Display |
| Rotisserie Kit | Heavy-Duty Kit Included |
| Meat Probe | Included |
| Left Infrared Sear Burner | Available (-L1N Models) |
| Magic View Window | Optional |
| Power Requirement | 110V AC |
| Cutout Dimensions | 50"W x 23.5"D x 11.5"H |
| Weight | 290 lbs |
| Warranty | Lifetime (Burners, Grids) / 1 Yr (Ignition) |
Manufacturer Warranty
This product is backed by a full manufacturer warranty. As an authorized dealer, all warranties are fully valid on purchases from Living Outdoorsy.
Contact us with your order number and description of the issue. We work directly with the manufacturer to process claims — most are resolved within 5–10 business days.
Downloads & Resources
Shipping Information
Free standard shipping on all orders over $99. This item ships via freight carrier and typically leaves our warehouse within 5–7 business days.
You'll receive tracking information via email once your order ships. Freight deliveries include curbside delivery.
Returns & Exchanges
We accept returns within 30 days of delivery. Items must be in original, unused condition with all packaging.
Contact our team at (844) 366-7791 or support@livingoutdoorsy.com to start a return.
What We Love
- Professional-grade construction designed for permanent outdoor kitchen installation
- High-performance burners with precise temperature control
- Sleek built-in design integrates seamlessly into custom outdoor kitchens
- Heavy-duty materials ensure decades of reliable grilling performance
Worth Noting
- Requires professional installation and custom cabinetry or island
- Higher investment than portable or freestanding alternatives
- Permanent installation means less flexibility for layout changes
