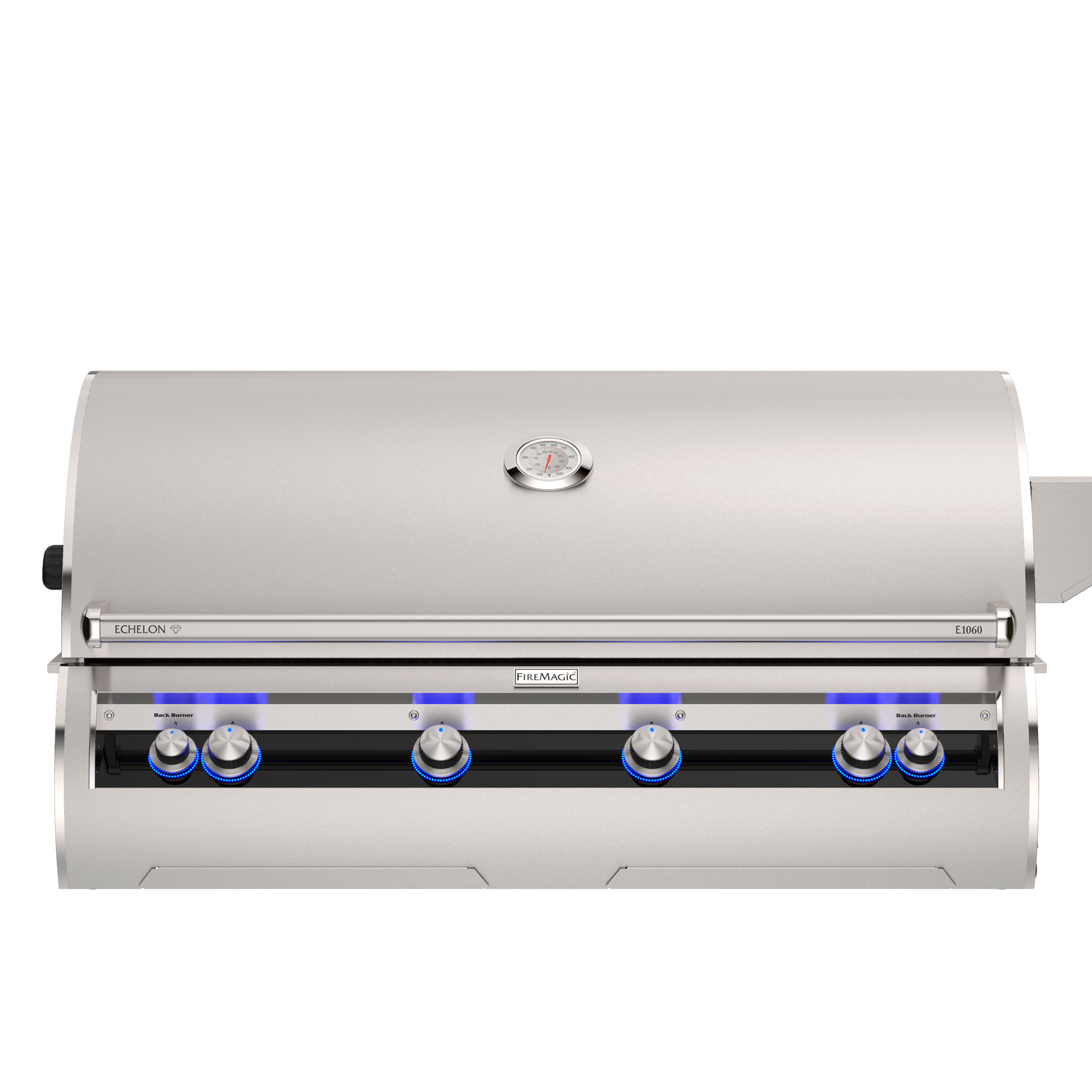

Fire Magic Echelon E1060i 48-Inch Built-In Grills with Analog Thermometer
About This Product
The Fire Magic Echelon Diamond E1060i 48-Inch Built-In Grill with Analog Thermometer is the largest built-in grill in the Echelon Diamond lineup — a commercial-scale cooking machine designed for outdoor kitchens where capacity and performance are non-negotiable. Four cast stainless steel burners produce 112,000 BTU of main cooking power, and a 22,000 BTU dual back burner pushes total output to an extraordinary 134,000 BTU.

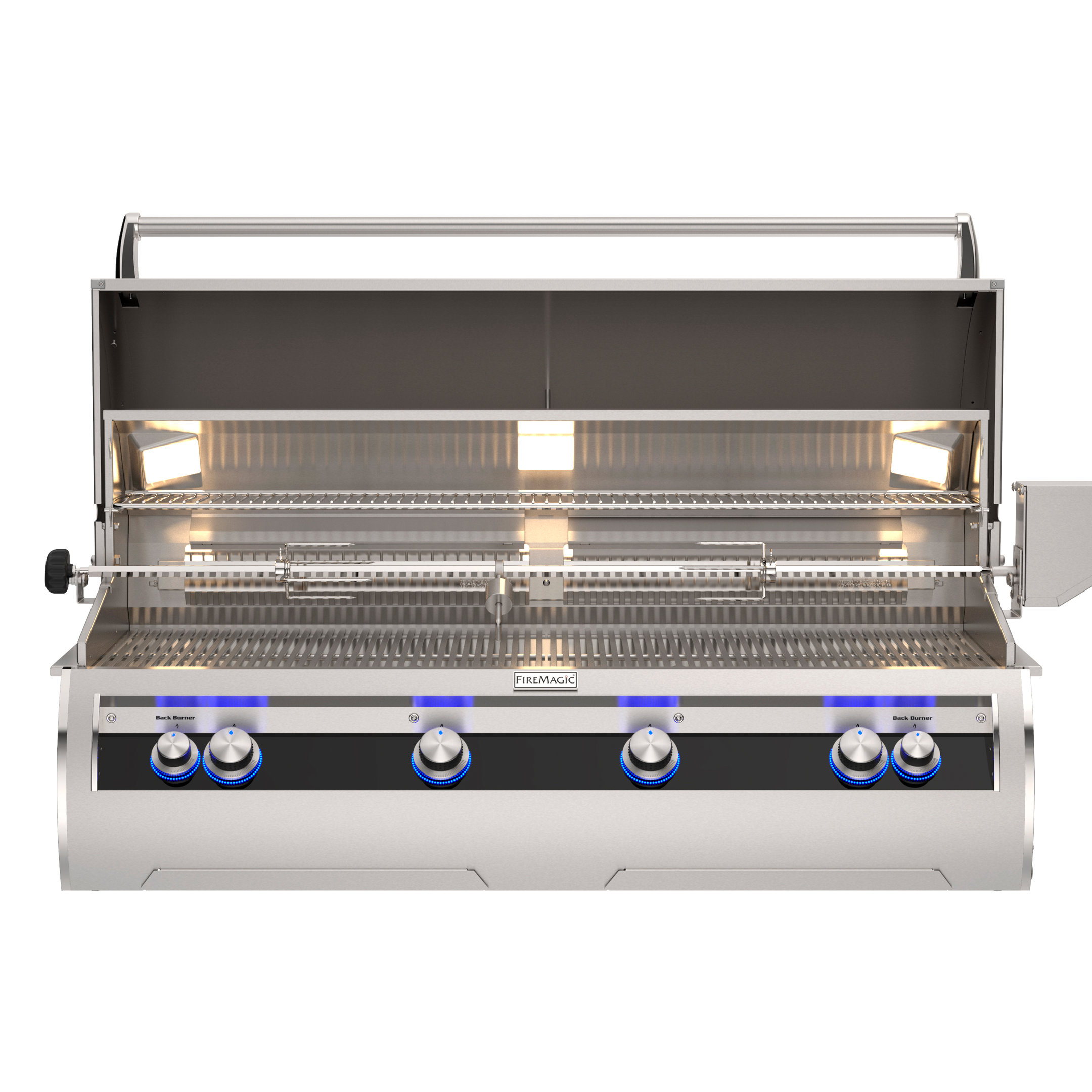

With 1,440 square inches of total cooking area — over 1,000 square inches of primary grilling surface alone — the E1060i can handle entire parties worth of food simultaneously. Sear steaks on one end, slow-cook ribs in the middle, and grill vegetables on the other, all with independent heat zone control. The included heavy-duty rotisserie kit handles whole turkeys, prime rib roasts, and large cuts with ease.
Fire Magic's patented Diamond Sear cooking grids span the full 48-inch width, delivering consistent, superior searing performance across every square inch. Three halogen interior lights angled toward the food illuminate the massive cooking surface, and blue backlit control knobs keep every heat zone visible and accessible after dark.

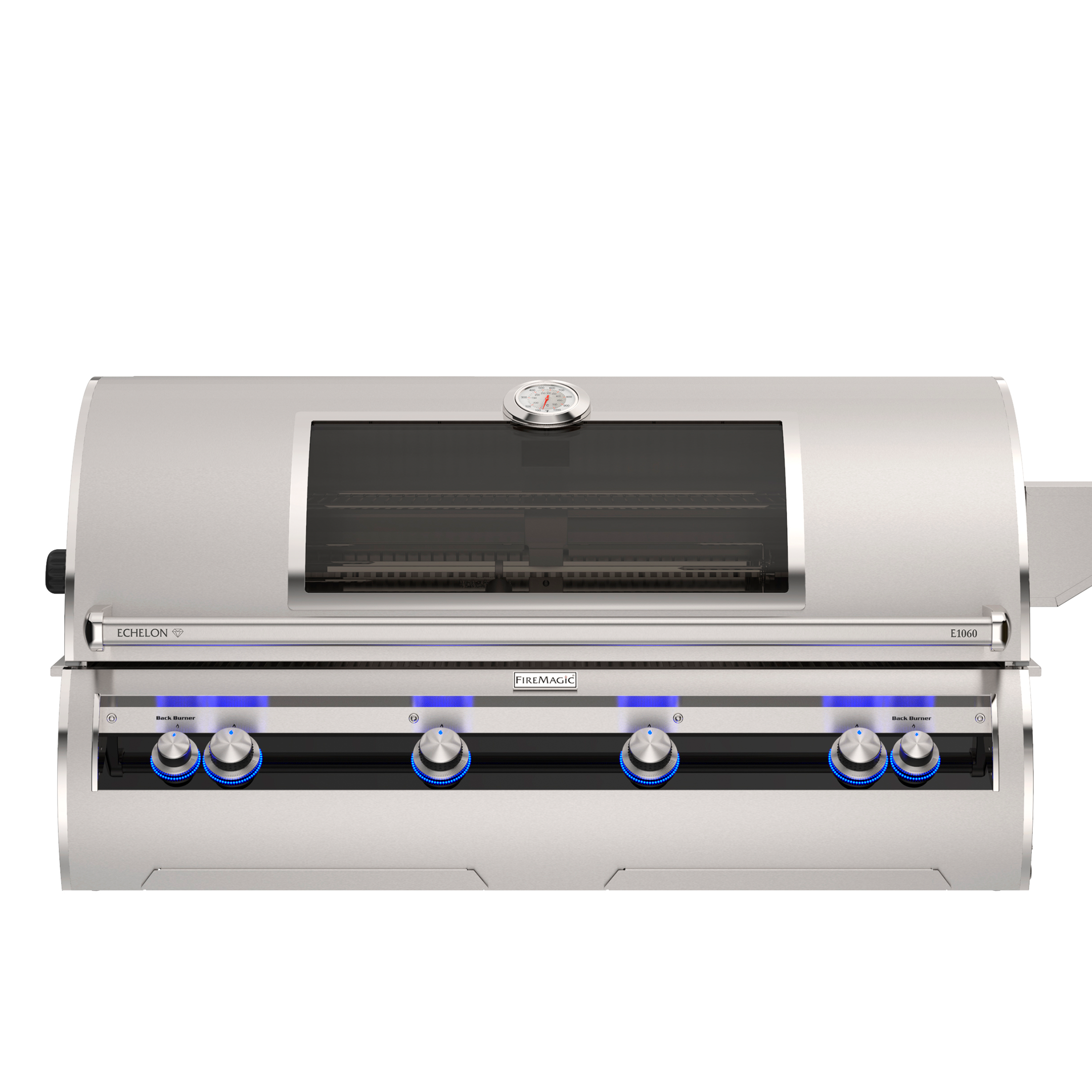

Built from 304-grade stainless steel and weighing 290 pounds, the E1060i is engineered for permanent installation in large-scale outdoor kitchens. The optional Magic View window and analog thermometer rated to 1,000°F complete the package. Lifetime warranty on burners and cooking grids. Available in natural gas or propane.
Specifications
| Model | E1060i-9EAN-W |
| Series | Echelon Diamond |
| Configuration | Built-In |
| Fuel Type | Natural Gas / Propane |
| Main Burners | 4 Cast Stainless Steel (1/4" Walls) |
| Main Burner BTU | 112,000 |
| Back Burner BTU | 22,000 |
| Total BTU | 134,000 |
| Primary Cooking Area | 1,056 sq. in. |
| Warming Rack Area | 384 sq. in. |
| Total Cooking Area | 1,440 sq. in. |
| Stainless Steel Grade | 304 |
| Cooking Grate Material | Diamond Sear Cooking Grids (Trapezoid) |
| Flavor Grid Material | 16-Gauge Stainless Steel |
| Ignition Type | Hot Surface Ignition |
| Thermometer | Analog (0–1000°F, Polished Bezel) |
| Hood Design | Double-Wall, Spring-Assisted (Opens 90°) |
| Grill Lights | 3 Halogen Interior Lights |
| Control Knobs | Blue Backlit |
| Rotisserie Kit | Heavy-Duty Kit Included |
| Magic View Window | Optional |
| Power Requirement | 110V AC |
| Cutout Dimensions | 50"W x 23.5"D x 11.5"H |
| Weight | 290 lbs |
| Warranty | Lifetime (Burners, Grids) / 1 Yr (Ignition) |
Manufacturer Warranty
This product is backed by a full manufacturer warranty. As an authorized dealer, all warranties are fully valid on purchases from Living Outdoorsy.
Contact us with your order number and description of the issue. We work directly with the manufacturer to process claims — most are resolved within 5–10 business days.
Downloads & Resources
Shipping Information
Free standard shipping on all orders over $99. This item ships via freight carrier and typically leaves our warehouse within 5–7 business days.
You'll receive tracking information via email once your order ships. Freight deliveries include curbside delivery.
Returns & Exchanges
We accept returns within 30 days of delivery. Items must be in original, unused condition with all packaging.
Contact our team at (844) 366-7791 or support@livingoutdoorsy.com to start a return.
What We Love
- Professional-grade construction designed for permanent outdoor kitchen installation
- High-performance burners with precise temperature control
- Sleek built-in design integrates seamlessly into custom outdoor kitchens
- Heavy-duty materials ensure decades of reliable grilling performance
Worth Noting
- Requires professional installation and custom cabinetry or island
- Higher investment than portable or freestanding alternatives
- Permanent installation means less flexibility for layout changes
